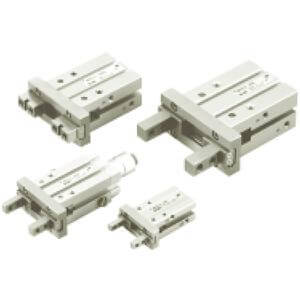

MHZL2, Air Gripper, Parallel Type, Long Stroke – MHZL2-20D
€443,51
Skip to product information
MHZL2, Air Gripper, Parallel Type, Long Stroke – MHZL2-20D
€443,51
VAT not included.
- The MHZ2 series is a standard type parallel air gripper, taking the place of the MHQ(G)2 series. A linear guide provides high rigidity and high accuracy. MHZ2 can operate under higher pressure even at a larger holding point and overhang. High degree of mounting precision is achieved and mounting repeatability is improved.
Key features
- Long stroke type parallel gripper
- Bore sizes from 10mm to 25mm available
- Double acting and single acting available
- Four finger options available
- Auto switch capable
Specifications
- Bore Size: 20mm
- Action: D (Double Acting)
- Finger Option: Basic Style
- Body Option: Basic Style
- Auto Switch: No Switch
- Lead Wire or Prewired Connector: 0.5m (Or None in the Case of No Switch)
- Number: 2 pcs (Or None in the Case of No Switch)
Additional information
- Part number: MHZL2-20D
- Lead time (days): 5
- Minimum order quantity: 1
- Country of origin: JP
- TARIC code: 8479907099
