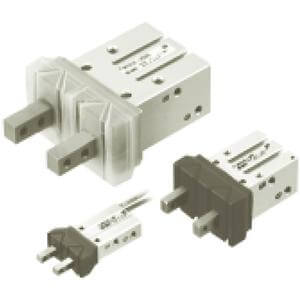

MHZJ2, Air Gripper, Parallel Type, With Dust Cover – MHZJ2-25DS
€578,55
Skip to product information
MHZJ2, Air Gripper, Parallel Type, With Dust Cover – MHZJ2-25DS
€578,55
VAT not included.
- The MHZ2 series is a standard type parallel air gripper, taking the place of the MHQ(G)2 series. A linear guide provides high rigidity and high accuracy. MHZ2 can operate under higher pressure even at a larger holding point and overhang. High degree of mounting precision is achieved and mounting repeatability is improved.
Key features
- Parallel air gripper with dust cover
- Bore sizes from 6mm to 25mm available
- Double acting or Single acting available
- Three dust cover types available
- Auto switch capable
Specifications
- Bore Size: 25mm
- Action: D (Double Acting)
- Body Option: Basic Style
- Dust Cover: S (Silicone Rubber(SI))
- Auto Switch: No Switch
- Lead Wire or Prewired Connector: 0.5m (Or None in the Case of No Switch)
- Number: 2 pcs. (Or None in the Case of No Switch)
Additional information
- Part number: MHZJ2-25DS
- Lead time (days): 5
- Minimum order quantity: 1
- Country of origin: JP
- TARIC code: 8479907099
