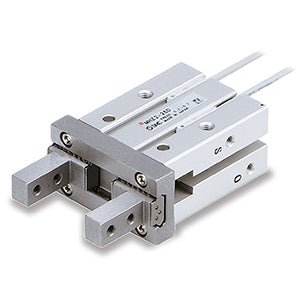

Standard - MHZ2 – MHZ2-25C2
€483,28
Skip to product information
Standard - MHZ2 – MHZ2-25C2
€483,28
VAT not included.
- Linear guide for high precision, smooth operation and gripping forces up to 318 N
Key features
- Maximum gripping force per finger 43.5 N at 0.5 MPa
- Double acting and single acting
- Repeatability: ±0.01mm
- Max. operating frequency: 180 c.p.m.
Specifications
- Bore Size: 25mm
- Action: C (Single Acting N.C.)
- Finger Position: 2 (Standard-Through Hole)
- Body Option: Basic
- Auto Switch: No Switch
- Lead Wire or Prewired Connector: 0.5m (Or None in the Case of No Switch)
- Number: 2 pcs. (Or None in the Case of No Switch)
Additional information
- Part number: MHZ2-25C2
- Minimum order quantity: 1
- Country of origin: JP
- TARIC code: 8479899790
