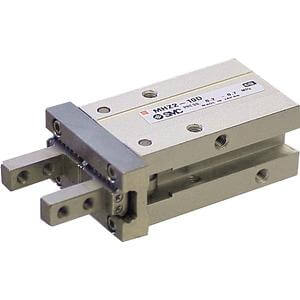

MHZ2, Air Gripper, Parallel Type, Standard – MHZ2-16C
€355,39
Skip to product information
MHZ2, Air Gripper, Parallel Type, Standard – MHZ2-16C
€355,39
VAT not included.
- The MHZ2 series is a standard type parallel air gripper, taking the place of the MHQ(G)2 series. A linear guide provides high rigidity and high accuracy. MHZ2 can operate under higher pressure even at a larger holding point and overhang. High degree of mounting precision is achieved and mounting repeatability is improved.
Key features
- Standard parallel type air gripper
- Bore sizes from 6 mm to 40 mm
- Double acting and Single acting available
- Auto switch capable
- Improved rigidity of guide rail
Specifications
- Bore Size: 16mm
- Action: C (Single Acting N.C.)
- Finger Position: Standard
- Body Option: Basic
- Auto Switch: No Switch
- Lead Wire or Prewired Connector: 0.5m (Or None in the Case of No Switch)
- Number: 2 pcs. (Or None in the Case of No Switch)
Additional information
- Part number: MHZ2-16C
- Lead time (days): 5
- Minimum order quantity: 1
- Country of origin: JP
- TARIC code: 8479907099
