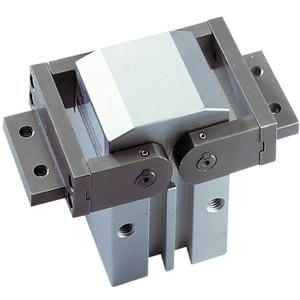

MHW2, Air Gripper, 180° Angular, Rack & Pinion Style – MHW2-20D1
€606,79
VAT not included.
- The MHW2 is ideal for applications where saving space is a necessity. In addition to its compact size, each one of the two fingers, synchronized by a rack and pinion, rotates back perpendicular to the gripper. In this position, the MHW2 will only require clearance for the body. While the fingers are retracted at a 180-degree angle, the gripper can be moved in an X-Y plane to the work.
Specifications
- Bore Size: 20mm
- Thread Type: Rc (or M Thread for 20 & 25 Bore)
- Finger Option: 1 (Opening/Closing Direction Tap Mounting)
- Auto Switch: No Switch
- Lead Wire or Prewired Connector: 0.5m (Or None in the Case of No Switch)
- Number: 2 pcs. (Or None in the Case of No Switch)
Additional information
- Part number: MHW2-20D1
- Lead time (days): 5
- Minimum order quantity: 1
- Country of origin: JP
- TARIC code: 8479899790
