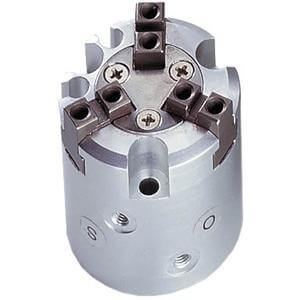

MHS3, Air Gripper, 3 Finger, Parallel Style – MHS3-16D
€468,61
Skip to product information
MHS3, Air Gripper, 3 Finger, Parallel Style – MHS3-16D
€468,61
VAT not included.
- These grippers utilize a wedge cam design to minimize their size yet retains a high holding force. The small size of the units makes them well suited for end-of-arm or space constrained pick-and-place applications. The three-finger design of the MHS3 makes it ideal for gripping round objects and loading or unloading items from the chuck of a machine tool.
Key features
- 3 finger parallel style air gripper, Double acting
- Three fingers
- Bore sizes: 16, 20, 30, 32, 40, 50, 63, 80, 100, 125 (mm)
- Auto switch capable
Specifications
- Bore Size: 16mm
- Thread Type: Rc
- M Thread 32 to 63 Bore:
- Auto Switch: No Switch
- Lead Wire or Prewired Connector: 0.5m (Or None in the Case of No Switch)
- Number: 2 pcs. (Or None in the Case of No Switch)
Additional information
- Part number: MHS3-16D
- Lead time (days): 5
- Minimum order quantity: -1
- Country of origin: JP
- TARIC code: 8479899790
