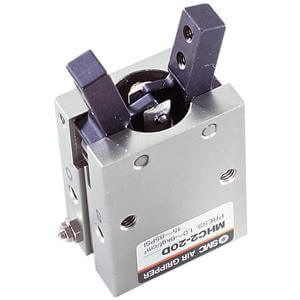

MHC2, Air Gripper, Angular Style – MHC2-10D
€207,58
Skip to product information
MHC2, Air Gripper, Angular Style – MHC2-10D
€207,58
VAT not included.
- The MHC gripper is ideal for use in applications requiring angular gripping. The opening angle ranges from 30 to -10 degrees. A double piston mechanism provides a large amount of gripping force, while maintaining a compact design. The MHC series has a built in speed adjustment and a recessed groove for auto switches.
Key features
- Angular style, compact, air gripper
- Large gripping force provided by the use of a
- double piston mechanism
- Action: double acting; single acting, normally open
- Bore sizes: ø10, ø16, ø20, ø25
- Built-in variable throttle
- Auto switch capable
Specifications
- Bore Size: 10mm
- Action: D (Double Acting)
- Auto Switch: No Switch
- Lead Wire or Prewired Connector: 0.5m (Or None in the Case of No Switch)
- Number: 2 pcs. (Or None in the Case of No Switch)
Additional information
- Part number: MHC2-10D
- Lead time (days): 5
- Minimum order quantity: 1
- Country of origin: JP
- TARIC code: 8479899790
