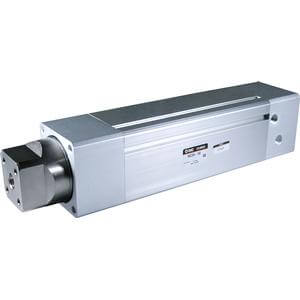

MGZ, Double Power Cylinder, Non-rotating – MGZ25TF-150
€463,02
Skip to product information
MGZ, Double Power Cylinder, Non-rotating – MGZ25TF-150
€463,02
VAT not included.
- The MGZ series is a non-lube double power air cylinder available in both rotating and non-rotating styles. The MGZ's unique design doubles the pressurized area for extension making the MGZ an ideal cylinder for lifting and pressing operations. The front end lock style MGZ holds the rod when extended.
Key features
- Non-rotating double power cylinder
- Bore sizes (mm): 20, 25, 32, 40, 50, 63, 80
- Standard strokes from 75 to 1000mm
- Port thread types: PT, NPT, G
- Optional coil scraper
- Auto switch capable
Specifications
- Mounting: Basic Type
- Bore Size: 25mm
- Port Thread: TF [G (25~80)]
- Coil Scraper: Without
- Stroke: 150
- Auto Switch: No Switch
- Lead Wire or Prewired Connector: 0.5m (Or None in the Case of No Switch)
- Number: 2 pcs. (Or None in the Case of No Switch)
Additional information
- Part number: MGZ25TF-150
- Lead time (days): 23
- Minimum order quantity: 1
- Country of origin: JP
- TARIC code: 8412310090
