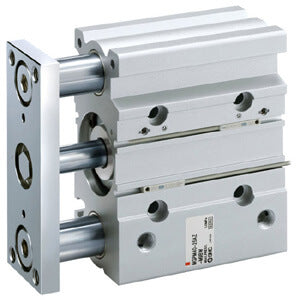

MGP-AZ, Compact Guide Cylinder, Air Cushion – MGPM63TF-75AZ
€588,42
Skip to product information
MGP-AZ, Compact Guide Cylinder, Air Cushion – MGPM63TF-75AZ
€588,42
VAT not included.
- Compact guide cylinder
- Bore sizes (mm): 12, 16, 20, 25, 32, 40, 50, 63, 80, 100
- Strokes up to 400 mm
- Multiple mounting surfaces.
Key features
- With Air Cushion.
- 3 types of bearing can be selected: slide bearing, ball bushing and high precision ball bushing.
- Compactness & Lightness
- Bore size: 16, 20, 25, 32, 40, 50, 63, 80, 100 (mm)
- Strokes from 10 to 400mm (depending upon bore size)
- Auto switches can be mounted on 2 surfaces.
Specifications
- Bearing Type: M (Slide Bearing)
- Bore Size: Ø63 mm
- Port Thread Type: TF [G]
- Stroke: 75 mm
- Auto Switch: No Switch
- Lead Wire or Prewired Connector: 0.5m [Or None in the Case of No Switch]
- Number: 2 pcs. [Or None in the Case of No Switch]
- Made to Order: None
Additional information
- Part number: MGPM63TF-75AZ
- Lead time (days): 6
- Minimum order quantity: 1
- Country of origin: CN
- TARIC code: 8479899790
