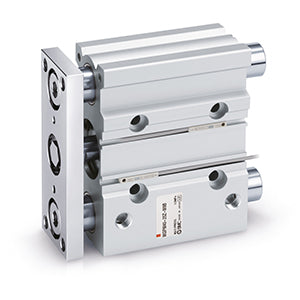

MGP-Z, Compact Guide Cylinder – MGPM25TF-100Z
€311,68
VAT not included.
- At SMC we have 'rolled' out an upgrade of our MGP Series guide cylinder, which is now smaller and boasts new features. The new MGP-Z is testament to our commitment to invest in ongoing research and development to refine and improve the performance and functionality of SMC products. The MGP-Z is up to 17% lighter and offers space savings thanks to shorter guide rods, without impacting on the variety of functions, robustness and quality performance of the original series. Another recent key development feature is that round auto switches can now be fitted directly onto the MGP-Z cylinder, removing the need for mounting brackets and reducing labour costs. The common issue of incorrectly positioned auto switches is also mitigated when using SMC's two colour indication solid state auto switch, D-M9*W. The MGP-Z has many standard feature options including three types of bearings, four mount designs, piping from two directions and offers cooper and fluorine free versions. Suitable for many industries including General Automation and Car, it has several applications including smooth pusher and lifter, lateral load by acting as a stopper where shock is applied, or minimising plate displacement.
Key features
- 3 types of bearing can be selected: slide bearing, ball bushing and high precision ball bushing.
- Compactness & Lightness
- Bore size: 12, 16, 20, 25, 32, 40, 50, 63, 80, 100 (mm)
- Strokes from 10 to 400mm (depending upon bore size)
- 4 types of mounting are possible: top mounting, side mounting, bottom mounting and T-slot side mounting.
- Auto switches can be mounted on 2 surfaces.
Specifications
- Bearing Type: M (Slide Bearing)
- Bore Size: Ø25 mm
- Port Thread Type: TF [G]
- Lube-retainer: Without Stable Lubrication Function
- Stroke: 100
- Auto Switch: No Switch
- Lead Wire Length: 0.5m [Or None in the Case of No Switch]
- Number of Auto Switches: 2 pcs. [Or None in Case of No Switch]
- Change of Guide Rod End Shape: None
- Temperature Resistance: None
- Low Speed: None
- Fluororubber Seal: None
- Grease for Food Processing Equipment: None
Additional information
- Part number: MGPM25TF-100Z
- Lead time (days): 5
- Minimum order quantity: 1
- Country of origin: CN
- TARIC code: 8479899790
