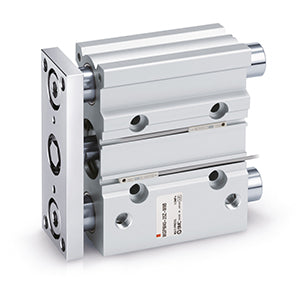

MGP-Z (ø12 to ø32), Compact Guide Cylinder – MGPM20TF-350Z
€381,40
VAT not included.
- Compact guide cylinder
- Bore sizes (mm): 12, 16, 20, 25, 32, 40, 50, 63, 80, 100
- Strokes up to 400 mm
- Multiple mounting surfaces.
Key features
- 3 types of bearing can be selected: slide bearing, ball bushing and high precision ball bushing.
- Compactness & Lightness
- Bore size: 12, 16, 20, 25, 32 (mm)
- Strokes from 1 to 400mm (depending upon bore size)
- 4 types of mounting are possible: top mounting, side mounting, bottom mounting and T-slot side mounting.
- Auto switches can be mounted on 2 surfaces.
Specifications
- Bearing Type: M (Slide Bearing)
- Bore Size: Ø20 mm
- Port Thread Type: TF [G]
- Lube-retainer: Without Stable Lubrication Function
- Stroke: 350
- Auto Switch: No Switch
- Lead Wire Length: 0.5m [Or None in the Case of No Switch]
- Number of Auto Switches: 2 pcs. [Or None in Case of No Switch]
- Change of Guide Rod End Shape: None
- Temperature Resistance: None
- Low Speed: None
- Stainless Steel: None
- Fluororubber Seal: None
- Grease for Food Processing Equipment: None
Additional information
- Part number: MGPM20TF-350Z
- Lead time (days): 6
- Minimum order quantity: 1
- Country of origin: CN
- TARIC code: 8479899790
