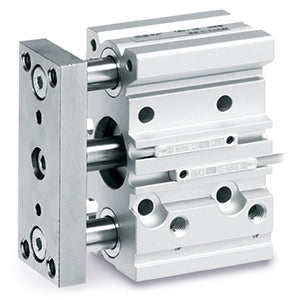

MGPK (ø12 to ø32), Compact Guide Cylinder – MGPKAM16-40
€221,50
Skip to product information
MGPK (ø12 to ø32), Compact Guide Cylinder – MGPKAM16-40
€221,50
VAT not included.
Key features
- Bore sizes (mm): 12, 16, 20, 25, 32
- Strokes up to 200 mm
- Top and side ported available
- 4 types of mounting are possible: Top, bottom, T-slot bottom and rear mounting
- Plate material is selectable: carbon steel or aluminium
- Auto switches can be mounted on 2 surfaces.
Specifications
- Plate Material: A (Aluminium Alloy)
- Bearing Type: M (Slide Bearing)
- Bore Size: Ø16
- Port Thread Type: Rc (Or M5x0.8 for 12, 16 Bores)
- Stroke: 40
- Piping Port Location: Top/Side Ported
- Auto Switch: No Switch
- Lead Wire Length: 0.5m (Or None in the Case of No Switch)
- Number of Auto Switches: 2 pcs. (Or None in the Case of No Switch)
Additional information
- Part number: MGPKAM16-40
- Lead time (days): 28
- Minimum order quantity: 1
- Country of origin: JP
- TARIC code: 8479899790
