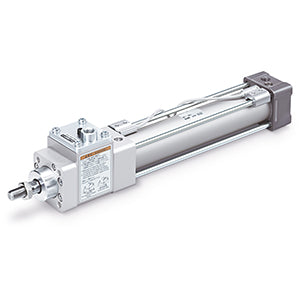

M(D)WB, Cylinder with Lock, Double Acting, Single Rod – MDWBB40TF-200
€542,80
Skip to product information
M(D)WB, Cylinder with Lock, Double Acting, Single Rod – MDWBB40TF-200
€542,80
VAT not included.
- Cylinder with Lock, Double Acting, Single/Double Rod
- Locking unit can be ordered separately
- Lock can be manually operated
- Separate construction of lock unit and cylinder
- Bore sizes (mm): 32, 40, 50, 63, 80, 100
- Strokes up to 2500 mm
- Air cushion / rubber bumper selectable.
Key features
- Cylinder with Lock: double acting single rod
- Bore sizes: 32, 40, 50, 63, 80, 100 (mm)
- Strokes from 25mm through 2500mm depending upon bore size
- Mounts: basic, foot, front & rear flange, single or double clevis, & center trunnion
- Variety of switches and a variety of lead wire lengths.
Specifications
- Magnet: D (Built-in Magnet)
- Mounting: B (Basic)
- Bore Size: 40mm
- Thread: TF (G)
- Stroke: 200
- Rod Boot: None
- Cushion: Air Cushion
- Pivot Bracket: No Bracket
- Rod End Bracket: No Bracket
- Auto Switch: No Switch
- Lead Wire or Prewired Connector: 0.5m (Or None in the Case of No Switch)
- Number: 2 pcs. (Or None in the Case of No Switch)
- Made to Order: None
Additional information
- Part number: MDWBB40TF-200
- Lead time (days): 23
- Minimum order quantity: 1
- Country of origin: JP
- TARIC code: 8412310090
