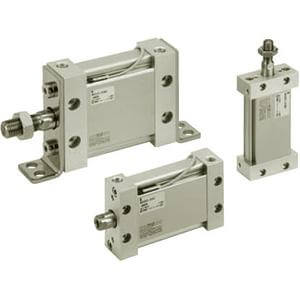

M(D)U Plate Cylinder, Double Acting, Single Rod w/Auto Switch Mounting Groove – MDUB25-15DZ
€83,57
Skip to product information
M(D)U Plate Cylinder, Double Acting, Single Rod w/Auto Switch Mounting Groove – MDUB25-15DZ
€83,57
VAT not included.
- The MU plate cylinder, with its elliptical design, provides a low profile while maintaining force output. The MU cylinder can eliminate the need for higher operating pressures that may be required for typical flat cylinders. The oval piston shape also provides an intrinsic non-rotating function without having to use a rod with flats, offering increased bearing and seal life.
Key features
- Plate Cylinder, Double Acting, Single Rod.
- Reduced labour when mounting the switch.
- Auto-switch doesn´t protrude.
- It´s possible to mount the autoswitches in four directions.
- A maximum 62% width reduction.
Specifications
- Magnet: D (Built-in)
- Mounting: B (Basic)
- Size: 25 (Equiv. Ø25 Piston Area)
- Port Thread Type: M thread
- Stroke: 15
- Rod End: Female Thread
- Auto Switch: None
- Lead Wire or Prewired Connector: 0.5m (Or None in the Case of No Switch)
- Number: 2 pcs. (Or None in the Case of No Switch)
Additional information
- Part number: MDUB25-15DZ
- Lead time (days): 5
- Minimum order quantity: 1
- Country of origin: CN
- TARIC code: 8412310090
