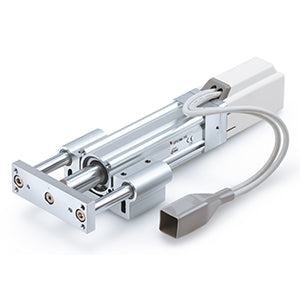

Battery-less Absolute Encoder Type - LEYG | LEYG40MDEA-30C-R5CP18

Ideal for high-precision, heavy-load environments, compatible with slide and ball-bushing bearings

Features

• Body size: 16, 25, 32 and 40 mm
• Stroke: 30 to 300 mm
• Speed control/Positioning: Max. 64 points
• Positioning and pushing control can be selected.

Specifications

• Part number: LEYG40MDEA-30C-R5CP18
• Article no.: 02956755
• Mounting: 8 (DIN Rail)
• Stroke: 30 mm
• Motor Mounting Position: D (In-line)
• Size: 40
• Bearing Type: M (Sliding Bearing)
• Lead: A (Size 16: 10 mm, Size 25: 12 mm, Size 32/40: 16 mm)
• Motor Option: C (w/Motor Cover)
• Communication Plug Connector, I/O Cable: None
• Actuator Cable Type, Length: R5 (5m)
• Guide Option: Without Option
• Controller: CP1 (PROFINET)
• Lead time: 28 days
• Country of origin: JP

Documents

• Catalogue
• CAD model (STEP)
• Operation manual
• Installation manual
