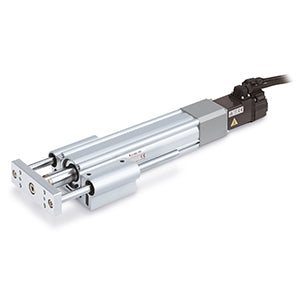

Standard Type, 100/200W - LEYG | LEYG32MDT7A-200-R5PD21
€2.881,77
VAT not included.
A rod type with guide newly added Compatible with slide-bearing and ball-bushing bearing Compatible with moment load and stopper (slide bearing) Speed control/Positioning: Max. 64 points Positioning and pushing control can be selected Direct mounting: 3 directions.
Features
- Body size: 25 and 32 mm.
- Stroke: 30 to 300 mm.
- AC Servo Motor, 100/200W.
- Speed control/Positioning: Max. 64 points.
- Positioning and pushing control can be selected.
Specifications
- Part number: LEYG32MDT7A-200-R5PD21
- Stroke: 200 mm
- Motor Mounting Position: D (In-line type)
- Size: 32
- Actuator Cable type: R (Robotic Flexible Cable)
- Bearing Type: M (Sliding Bearing)
- Cable length: 5 (5m)
- Motor Option: w/o Lock
- Driver Type: PD2 (LECSND2-T-P/PROFINET, 200V to 240V)
- Guide Option: Without Option
- I/O Connector: 1 (1.5 m)
- Accuracy: Basic Type
- Motor Type: T7 (200W Output, Absolute Encoder, LECSS2)
- Lead Screw: A [LEYG25, 12mm; LEYG32, 16(20)mm]
