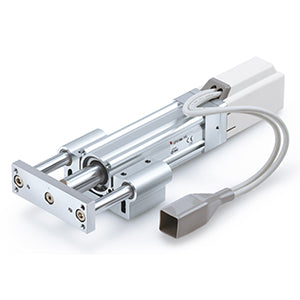

Standard Type - LEYG | LEYG32LDA-50C-R5CPF8
€1.820,60
VAT not included.
Ideal for high-precision, heavy-load environments, compatible with slide and ball-bushing bearings
Features
- Body size: 16, 25, 32 and 40 mm.
- Stroke: 30 to 300 mm.
- Speed control/Positioning: Max. 64 points.
- Positioning and pushing control can be selected.
Specifications
- Part number: LEYG32LDA-50C-R5CPF8
- Stroke: 50 mm
- Motor: Step Motor (Servo 24 VDC)
- Size: 32
- Motor Option: C (w/Motor Cover)
- I/O cabling for LEC controllers: Without Cable
- Guide Option: Without Option
- Controller: C (JXC, Step Motor Controller)
- Actuator Cable Length: 5 (5m)
- Actuator Cable: R (Robotic Flexible Cable)
- I/O cabling for JXC Controllers & communication plug connector: None
- Bearing: L (Ball Bushing Bearing)
- Controller Mounting: 8 (DIN Rail)
- Mounting Position: D (In-line)
- Suffix: F (With STO Sub-Function)
- Lead Screw: A (Size 16: 10 mm, Size 25: 12 mm, Size 32: 16 mm)
- Protocol: P (PROFINET)
