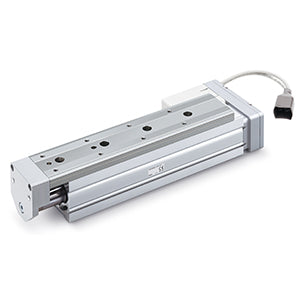

Battery-less Absolute Encoder Type – LESYH | LESYH8D2EA-50C-R5C6185
€1.195,24
Skip to product information
Battery-less Absolute Encoder Type – LESYH | LESYH8D2EA-50C-R5C6185
€1.195,24
VAT not included.
Oriented to standard applications with precission need
Features
- Body size: 8, 16 and 25 mm
- Stroke: 50 to 150 mm
- Speed: up to 400 mm/s
- Acceleration: up to 5000 mm/s²
- Step motor type
- Encoder: battery-less.
Specifications
- Part number: LESYH8D2EA-50C-R5C6185
- Article no.: 02956564
- Mounting: 8 (DIN Rail)
- Stroke: 50 mm
- Motor Mounting Position: D2 (In-line, Right Side)
- Size: 8
- Lead: A (Size 8: 10mm, Size 16: 12mm, Size 25: 16mm)
- Motor Option: C (w/Motor Cover)
- Communication Plug Connector, I/O Cable: 5 (I/O Cable, 5m)
- Actuator Cable Type, Length: R5 (5m)
- Controller: C61 [Parallel Input (PNP)]
- Lead time: 28 days
- Country of origin: JP
