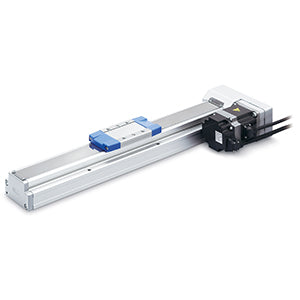

High Rigidity and High Precision, AC Servo Motor – LEKFS | LEKFS32T7A-100-R59D21
€3.299,50
VAT not included.
For positioning or transfer applications demanding precision, high speed and low maintenance.
Features
- Body size: 25, 32 and 40 mm
- Stroke: 50 to 1200 mm
- Acceleration: up to 20000 mm/s²
- Speed: up to 1500 mm/s
- AC servo motor
- Compatible encoder: absolute, incremental.
Specifications
- Part number: LEKFS32T7A-100-R59D21
- I/O Connector: 1 (1.5 m)
- Stroke: 100 mm
- AC Servo Motor: T7 (200W Output, Absolute Encoder, LECSB2/C2/S2)
- Seal Band Stopper: Standard
- Motor Mounting Position: In-line
- Size: 32 mm
- Motor Option: w/o Lock
- Lead Screw: A (Size 25: 12 mm, Size 32: 16 mm, Size 40: 20 mm)
- Driver: 9D2 (LECSND2-T-9/EtherNet/IP™, 200V to 240V)
- Actuator Cable Length: 5 (5 m)
- Actuator Cable: R (Robotic Flexible Cable)
