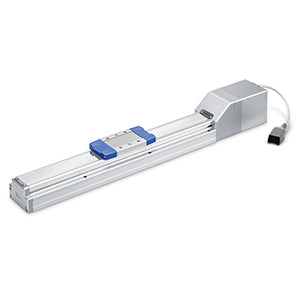

High Rigidity and High Precision - LEKFS | LEKFS32EA-150-R5CP18
€2.138,04
Skip to product information
High Rigidity and High Precision - LEKFS | LEKFS32EA-150-R5CP18
€2.138,04
VAT not included.
Optimal for standard applications
Features
- Body size: 16, 25, 32 and 40 mm
- Stroke: 50 to 1200 mm
- Acceleration: up to 3000 mm/s²
- Speed: up to 1200 mm/s
- Step motor type
- Compatible encoder: battery-less absolute.
Specifications
- Part number: LEKFS32EA-150-R5CP18
- Controller Mounting: 8 (DIN Rail Mounting)
- Series: LEKFS
- Stroke: 150
- Seal Band Stopper: Standard
- Motor Mounting Position: In-line
- Size: 32
- Motor Type: E (Battery-less absolute, 24VDC)
- Lead: A (Size 16: 10 mm, Size 25: 12 mm, Size 32: 16 mm, Size 40: 20 mm)
- Motor Option: Without Option
- Communication Plug Connector, I/O Cable: None
- Actuator Cable Type, Length: R5 (5)
- Controller: CP1 (PROFINET)
