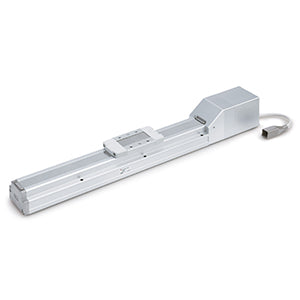

Standard Model - LEFS | LEFS40A-700-R5CE18
€2.426,78
VAT not included.
Optimal for standard applications
Features
- Body size: 16, 25, 32 and 40 mm
- Stroke: 50 to 1200 mm
- Acceleration: up to 3000 mm/s²
- Speed: up to 1200 mm/s
- Step and servo motor types
- Encoder: incremental.
Specifications
- Part number: LEFS40A-700-R5CE18
- Article no.: 01560559
- Stroke: 700 mm
- Auto Switch Mounting Bracket: None
- Motor Mounting Position: In-line
- Motor: Step Motor [Servo 24 VDC]
- Size: 40 mm
- Motor Option: w/o Lock
- I/O cabling for LEC controllers: Without Cable
- Positioning Pin Hole: Housing B Bottom
- Controller: C (JXC, Step Motor Controller)
- Actuator Cable Length: 5 (5 m)
- Actuator Cable: R (Robotic Flexible Cable)
- I/O cabling for JXC Controllers & communication plug connector: None
- Controller Mounting: 8 (DIN Rail)
- Accuracy: Basic Type
- Seal Band Stopper: Standard
- Suffix: 1 (For Single Axis)
- Lead Screw: A (Size 16: 10 mm, Size 25: 12 mm, Size 32: 16 mm, Size 40: 20 mm)
- Protocol: E (EtherCAT®)
- Lead time: 10 days
- Country of origin: JP
