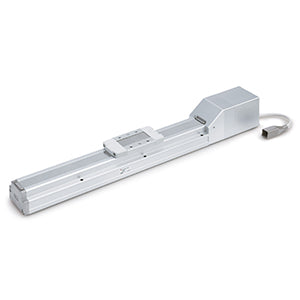

Battery-less Absolute Encoder Type - LEFS | LEFS32EA-300-R5C6185
€1.733,27
Skip to product information
Battery-less Absolute Encoder Type - LEFS | LEFS32EA-300-R5C6185
€1.733,27
VAT not included.
Optimal for standard applications
Features
- Body size: 16, 25, 32 and 40 mm
- Stroke: 50 to 1200 mm
- Acceleration: up to 3000 mm/s²
- Speed: up to 1200 mm/s
- Step motor type
- Encoder: battery-less absolute.
Specifications
- Part number: LEFS32EA-300-R5C6185
- Article no.: 02955844
- Stroke: 300 mm
- Motor Mounting Position: In-line
- Size: 32
- Motor Option: Without Option
- Actuator Cable Type, Length: R5 (5m)
- Positioning Pin Hole: Housing B Bottom
- Controller: C61 [Parallel Input (PNP)]
- Auto Switch Compatibility: None
- Mounting: 8 (DIN Rail)
- Series: LEFS
- Accuracy: Basic type
- Grease Application: With
- Motor Type: E (Battery-less absolute, 24VDC)
- Lead: A (Size 16: 10 mm, Size 25: 12 mm, Size 32: 16 mm, Size 40: 20 mm)
- Communication Plug Connector, I/O Cable: 5 (I/O Cable, 5m)
- Lead time: 28 days
- Country of origin: JP
