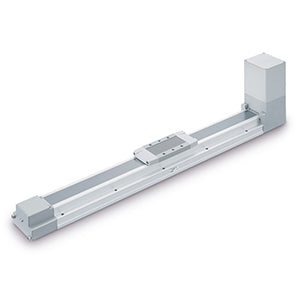

AC Servo Motor 100/200/400W - LEFB | LEFB32T7S-700-R59D21
€3.632,38
VAT not included.
Suitable for easy transfer or positioning in standard applicationsBody size: 25, 32, 40Stroke: 300 to 3000 mmCompatible encoders: absolute, incrementalAC servo motorHorizontal work load: up to 25 kgSpeed: 2000 mm/sAcceleration: up to 20000 mm/s².
Features
- Body size: 25, 32 and 40 mm
- Stroke: 300 to 3000 mm.
Specifications
- Part number: LEFB32T7S-700-R59D21
- I/O Connector: 1 (1.5 m)
- Stroke: 700 mm
- AC Servo Motor: T7 (200W Output, Absolute Encoder, LECSS2)
- Auto Switch Mounting Bracket: None
- Motor Mounting Position: Top Mounting Type
- Size: 32
- Cable length: 5 (5m)
- Motor Option: None
- Driver: 9D2 (LECSND2-T-9/EtherNet/IP™, 200V to 240V)
- Positioning Pin Hole: Housing B Bottom
- Actuator Cable: R (Robotic Flexible Cable)
