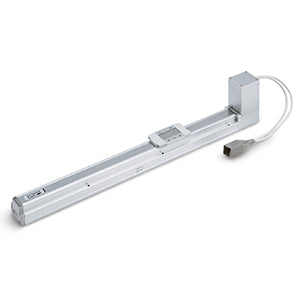

Belt Drive, 24V DC - LEFB | LEFB32T-1000-R5C918

Suitable for easy transfer or positioning in standard applications.

Features

• Body size: 16, 25 and 32 mm.
• Stroke: 300 to 2000 mm.
• Step and servo motor types.

Specifications

• Part number: LEFB32T-1000-R5C918
• Article no.: 01568658
• Stroke: 1000 mm
• Auto Switch Mounting Bracket: None
• Motor: Step Motor (Servo 24 VDC)
• Size: 32
• Motor Option: w/o Lock
• I/O cabling for LEC controllers: Without Cable
• Positioning Pin Hole: Housing B Bottom
• Controller: C (JXC, Step Motor Controller)
• Actuator Cable Length: 5 (5m)
• Actuator Cable: R (Robotic Flexible Cable)
• I/O cabling for JXC Controllers & communication plug connector: None
• Controller Mounting: 8 (DIN Rail)
• Seal Band Stopper: Standard
• Suffix: 1 (For Single Axis)
• Protocol: 9 (EtherNet/IP)
• Lead time: 24 days
• Country of origin: JP

Documents

• Catalogue
• Datasheet
• CAD model (STEP)
• Operation manual
• Installation manual
• Installation manual 2
