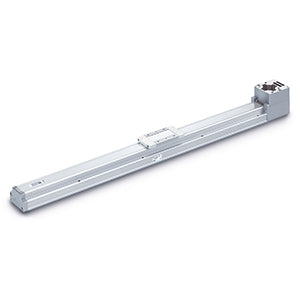

Belt Drive, Motorless - LEFB | LEFB25NZS-1200

Suitable for easy transfer or positioning in standard applications with customised motor

Features

• Body size: 25, 32, 40
• Stroke: 300 to 3000 mm
• AC servo motor 100, 200, 400 W
• Horizontal workload: up to 25 kg
• Speed: 2000 mm/s
• Acceleration: up to 20000 mm/s²
• Compatible with several motors: OMRON, Siemens AG, Beckhoff automation and more.

Specifications

• Part number: LEFB25NZS-1200
• Article no.: 01230613
• Series: LEFB (Belt Drive)
• Stroke: 1200 mm
• Auto Switch Mounting Bracket: None
• Motor Mounting Position: Top Mounting
• Size: 25
• Motor Type: NZ (Mounting Type Z)
• Lead: S
• Positioning Pin Hole: Housing B Bottom
• Lead time: 23 days
• Country of origin: JP

Documents

• Catalogue
• Datasheet
• CAD model (STEP)
