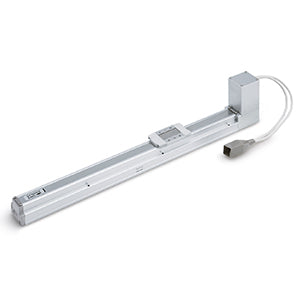

Belt Drive, 24V DC - LEFB | LEFB16T-1000-R5CPF8

Suitable for easy transfer or positioning in standard applications.

Features

• Body size: 16, 25 and 32 mm.
• Stroke: 300 to 2000 mm.
• Step and servo motor types.

Specifications

• Part number: LEFB16T-1000-R5CPF8
• Stroke: 1000 mm
• Auto Switch Mounting Bracket: None
• Motor: Step Motor (Servo 24 VDC)
• Size: 16
• Motor Option: w/o Lock
• I/O cabling for LEC controllers: Without Cable
• Positioning Pin Hole: Housing B Bottom
• Controller: C (JXC, Step Motor Controller)
• Actuator Cable Length: 5 (5m)
• Actuator Cable: R (Robotic Flexible Cable)
• I/O cabling for JXC Controllers & communication plug connector: None
• Controller Mounting: 8 (DIN Rail)
• Seal Band Stopper: Standard
• Suffix: F (With STO Sub-Function)
• Protocol: P (PROFINET)

Documents

• Catalogue
• Datasheet
• CAD model (STEP)
• Operation manual
• Installation manual
• Installation manual 2
