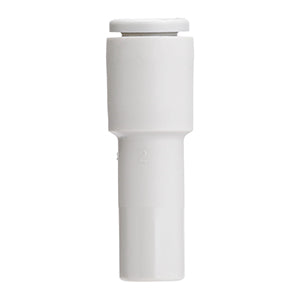

Plug-In Reducer - KQ2R – KQ2R06-12A

• One-touch fitting, a general purpose PBT material
• Applicable tubing from Ø 2 to Ø 16
• Threads, sizes: M, R, Rc, G, NPT, UNF, UNI from M3 to 1/2
• Operating pressure range: -100 kPa to 1 MPa
• Fluid temperature: -5 to 60 °C, water: 0 to 40 °C
• With sealant.

Key features

• Plug-in reducer.
• Applicable Tubing O.D.: ø2, ø3.2, ø4, ø6, ø8, ø10, ø12, ø16, ø1/8, ø5/32, ø3/16, ø1/4, ø5/16, ø3/8.
• Applicable Fitting: ø4, ø6, ø8, ø10, ø12, ø16, ø5/32, ø3/16, ø1/4, ø5/16, ø3/8, ø1/2.

Specifications

• Applicable Tube O.D.: ø 6
• Applicable Fitting: ø 12
• Release Button: Round Type

Additional information

• Part number: KQ2R06-12A
• Lead time (days): 5
• Minimum order quantity: 10
• Country of origin: SG
• TARIC code: 3917400099

Documents

• Catalogue (PDF)
• CAD model
