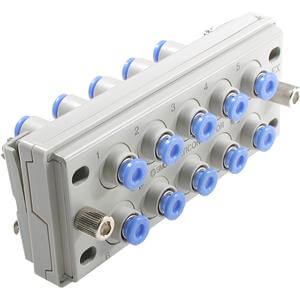

KDM, Plug/Socket, Rectangular Multi-Connector – KDM20S-08

• Rectangular multi-connector series KDM has substantial reduction in mounting space in comparison with a model requiring many union joints for panels and partitions, this model needs only a small space. KDM is suitable for use with positive pressure and vacuum. It is possible to create a multi-connector with mixed tube sizes.

Key features

• Plug & socket connectors
• Mixed sizes of connectors available
• Packing: usable from vacuum to 1MPa
• Release button: (inch) red, (metric) blue

Specifications

• No. of Connecting Tubes: 20 Tubes
• Form: S (Socket Side Only)
• Applicable Tube O.D.: Ø8

Additional information

• Part number: KDM20S-08
• Lead time (days): 5
• Minimum order quantity: 1
• Country of origin: CN
• TARIC code: 3926909790

Documents

• Catalogue (PDF)
• CAD model
