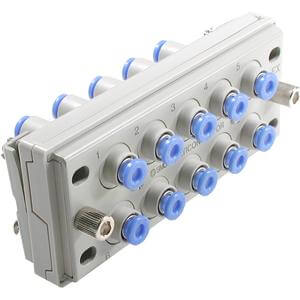

KDM, Rectangular Multi-Connector – KDM20-04

• Rectangular multi-connector series KDM has substantial reduction in mounting space in comparison with a model requiring many union joints for panels and partitions, this model needs only a small space. KDM is suitable for use with positive pressure and vacuum. It is possible to create a multi-connector with mixed tube sizes.

Key features

• Rectangular multi-connector
• Connecting tubing: 10, 20
• Substantial reduction in mounting space
• One-touch connection/disconnection of tubing

Specifications

• No. of Connecting Tubes: 20
• Tubing O.D.: ø4

Additional information

• Part number: KDM20-04
• Lead time (days): 5
• Minimum order quantity: 1
• Country of origin: CN
• TARIC code: 3926909790

Documents

• Catalogue (PDF)
• CAD model
