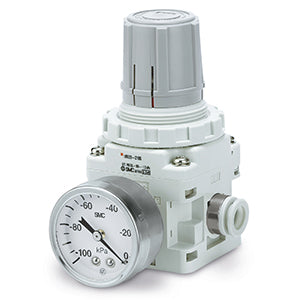

IRV10/20, Vacuum Regulator – IRV10A-LC06G
€133,02
VAT not included.
- The IRV series vacuum regulator was developed to upgrade the design of the T203 model in a more compact size and to expand the range of vacuum regulators. Thread sizes available include Rc(PT), NPT and G(PF). The new and improved IRV10/20 series offers single sided connections for ease of installation and panel mounting. Built-in one-touch fittings include 6, 8, and 10mm and also 1/4", 5/16", and 3/8" for both fitting types elbow or straight.
Key features
- Standarized single piping.
- Maximum flow rate is now more than twice the flow rate of the existing model: 140 l/min (ANR), 240 l/min (ANR).
- 20% Mass reduction.
- Integrated one-touch fitting is now standard.
- Easy to attach/detach the pressure gauge or digital pressure switch due to attachment by clip.
- 2 possible mounting orientations for the pressure gauge or digital pressure switch.
- Multiple mounting angles.
- Expanding mounting variations.
Specifications
- Body Size: 10 [Max Flow 140 l/min (ANR)]
- Single Sided Connections: A (Single Sided Connections)
- Fittings: L (Elbow)
- Connection Tubing O.D.: C06 (ø6mm)
- Bracket: None
- Accessory: G (With Pressure Gauge)
- Panel Mounted Switch: None
Additional information
- Part number: IRV10A-LC06G
- Lead time (days): 4
- Minimum order quantity: 1
- Country of origin: JP
- TARIC code: 8481209090
