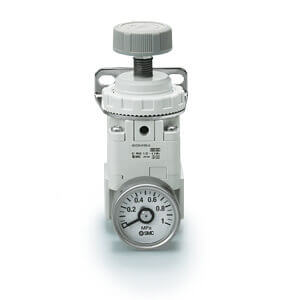

IR1200/2200/3200-A, Regulator | IR1220-F01B-A

Repeatability: ±1 % F.S. 3 sizes with 3 set pressure ranges: 0.005 to 0.2 MPa; 0.01 to 0.4 MPa; 0.01 to 0.8 MPa. Air consumption: bleed air "0". Maximum flow range: 5000 l/min. Port sizes: from 1/8 to 1/2. Standard options: bracket; pressure gauge.

Features

• Lightweight.
• Addition of bottom and front exhaust.
• Repeatability ±1.0 % (full span).
• High flow rate.
• Max. supply pressure: 1.0 MPa.

Specifications

• Part number: IR1220-F01B-A
• Body Size: 1
• Set pressure: 2 (0.02 to 0.8 MPa)
• Exhaust Direction: 0 (Bottom Exhaust)
• Thread: F (G)
• Port Size: 01 (1/8)
• Option: B (With bracket)
• Semi-standard: None
• Country of origin: JP

Documents

• Catalogue
• Datasheet
• CAD model (STEP)
• Operation manual
• Operation manual 2
• Operation manual 3
• Operation manual 4
