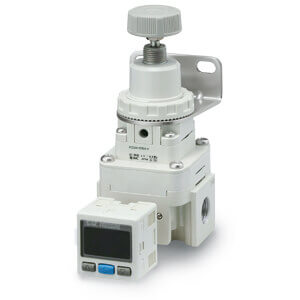

IR1000-A~3000-A, Precision Regulator | IR1000-F01B-A
€86,84
Skip to product information
IR1000-A~3000-A, Precision Regulator | IR1000-F01B-A
€86,84
VAT not included.
PRECISION REGULATOR
Setting sensitivity 0.2 % F.S; repeatability ±0.5 % F.S. 3 sizes with 3 set pressure ranges: 0.005 to 0.2 MPa; 0.01 to 0.4 MPa; 0.01 to 0.8 MPa. Air consumption: 1 l/min or less. Maximum flow range: 4000 l/min. Port sizes: from 1/8 to 1/2. Standard options: bracket; pressure gauge.
Features
- Lightweight.
- Addition of bottom and front exhaust.
- Precision regulator, with repeatability ± 0.5 % (full span). Sensitivity: 0.2 % (full span).
- Max. supply pressure: 1.0 MPa.
Specifications
- Part number: IR1000-F01B-A
- Item number: 01446719
- Body Size: 1
- Set pressure: 0 (Body Size 1, 2
- Body Size 3: [0.01 to 0.2 MPa])
- Exhaust Direction: 0 (Bottom Exhaust)
- Thread: F (G)
- Port Size: 01 (1/8)
- Option: B (With bracket)
- Semi-standard: None
- Lead time: 5 days
- Country of origin: JP
