EVZM400, 5 Port Mechanical Valve, Metal Seal, European | EVZM450-F01-34B
€77,18
Skip to product information
EVZM400, 5 Port Mechanical Valve, Metal Seal, European | EVZM450-F01-34B
€77,18
VAT not included.

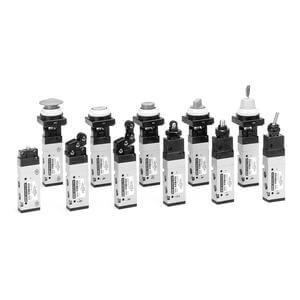

Mechanical valve
The VZM series is a 5 port mechanical valve. It is compact in design with a large flow capacity (VZM400 10mm², VZM500 10,9mm²). The VZM is available in a metal or rubber spool style, with a variety of actuator choices and optional external pilot.
Features
- Fluid: air, inert gas
- Operating pressure: 0.15 to 1.0MPa
- Ambient and fluid temp: -5° to 60°C (no freezing)
- Effective area (mm²): 10
- Thread: G(PF)
- Port size: main valve 1/8, pilot valve (EXH) M5x0.8
Specifications
- Part number: EVZM450-F01-34B
- Item number: 00160221
- Suffix: B (Push Button Selector Color Black)
- Accessory: None
- Style: 34 (Selector (2 Position))
- Body Option: 0 (Standard Internal Pilot)
- Lead time: 24 days
- Country of origin: JP
