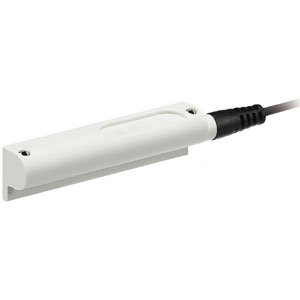

D-MP, Actuator Position Sensor – D-MP200B
€462,81
Skip to product information
D-MP, Actuator Position Sensor – D-MP200B
€462,81
VAT not included.
- Actuator stroke position is detected with an analogue signal
- IO-Link compatible
- Directly slotted into the actuator groove
- Repeatability of 0.1 mm
- 4 measurement ranges
- Flexible switch output.
Key features
- Measuring range: 25mm, 50mm, 100mm and 200mm.
- Applicable Cylinder: MB, CQ2, MGP, CXSJ, CP96, C96 and C55.
- Compatible IO-Link.
- Analogue output: Voltage output (0 to 10 [V]), Current output (4 to 20 [mA]).
- Analogue output can be reversed.
- Setting is available by simply touching the touch pad.
- Lead wire connection: Separate line, M8-4pin and M12-4 pin.
Specifications
- Measuring Range: 200 (200mm)
- Lead Wire: B (M8-4 Pin, 0.3 m)
Additional information
- Part number: D-MP200B
- Lead time (days): 5
- Minimum order quantity: 1
- Country of origin: HU
- TARIC code: 8536501990
