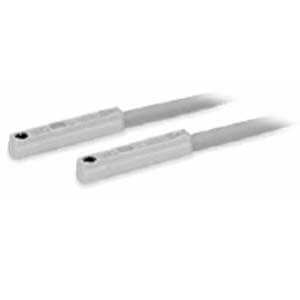

D-M9NW/M9PW/M9BW, 2 Colour Indication Style Solid State Switch, Direct Mounting, Grommet, In-line – D-M9PWZ
€43,42
Skip to product information
D-M9NW/M9PW/M9BW, 2 Colour Indication Style Solid State Switch, Direct Mounting, Grommet, In-line – D-M9PWZ
€43,42
VAT not included.
- SMC offers a variety of auto switches for actuators and air grippers.; Solid state switches are available in a general purpose type or with 2-color indication, which allows the optimum operating position to be determined by the color of the light.; Solid state switches are also available in 2-color indication with diagnostic output, water resistant 2-color indication, built-in OFF-delay timer (200 ms), magnetic field resistant, heat resistant and wide range detection configurations.; Various lead wire lengths are available.
Key features
- Electrical entry: Grommet.
- Application Load: IC circuit/Relay/PLC, 24V DC Relay/PLC.
- Power voltage: 5/12/24V DC (4.5 to 28V DC).
- Load current: 5 to 40mA.
Specifications
- Model: M9PW (3-wire, PNP)
- Lead Wire Length: Z (5 m)
Additional information
- Part number: D-M9PWZ
- Lead time (days): 5
- Minimum order quantity: 1
- Country of origin: JP
- TARIC code: 8536501990
