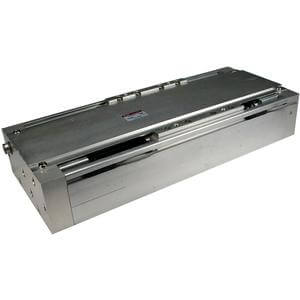

CY1H, Magnetically Coupled Rodless Cylinder, High Precision Guide – CY1H20-500
€1.263,92
VAT not included.
- With no external leakage, the CY series can be used in many diverse environments. Magnetically coupled cylinders have a wide range of applications, and save mounting space. Loads and moments are possible through the use of integrated guides. A variety of guides can be used to achieve the necessary accuracy or allowable moment needed for your application. CY is available in 9 bore sizes, from 6mm to 63mm with standard stokes up to 1000mm. The 5 different model variations offer widest application choice. Auto switches are integrated as standard.
Key features
- High precision guide
- Bore sizes: 6, 10, 15, 20, 25, & 32(mm)
- Strokes from 100mm through 1000mm
- Available with shock absorbers
- Auto-switch capable
Specifications
- Guide Suffix: 1 Axis
- Bore Size: 20mm
- Stroke: 500mm
- Adjuster: Adjuster Bolt
- Auto Switch: No Switch
- Lead Wire or Prewired Connector: 0.5m (Or None in the Case of No Switch)
- Number: 2 pcs. (Or None in the Case of No Switch)
Additional information
- Part number: CY1H20-500
- Lead time (days): 21
- Minimum order quantity: 1
- Country of origin: JP
- TARIC code: 8479899790
