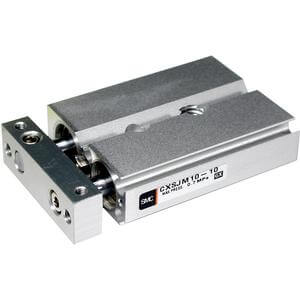

CXSJ, Dual Rod Cylinder, Compact Type – CXSJM15-75
€331,54
Skip to product information
CXSJ, Dual Rod Cylinder, Compact Type – CXSJM15-75
€331,54
VAT not included.
- Series CXS is available in six bore sizes and stroke lengths up to 100mm. This series is very compact and has a very accurate non-rotating specification. It is suited for accurate pick-and-place applications or light duty material handling. The CXS can be used with either reed or solid state switches. Available in clean room versions.
Key features
- Dual rod cylinder, compact type
- Slide bearing or ball bushing bearing
- Bore size (mm): 6, 10, 15, 20, 25, 32
- Standard strokes (mm): 10, 20, 30, 40, 50, 75, 100
- Auto switches available
- Made to Order additionally released.
Specifications
- Bearing Style: M (Slide Bearing)
- Bore Size: 15mm
- Thread Type: Rc (or M Thread for 6 to 25 Bore)
- Piping: Standard Porting
- Stroke: 75mm
- Auto Switch: No Switch
- Lead Wire or Prewired Connector: 0.5m [Or None in the Case of No Switch]
- Number: 2 pcs. [Or None in the Case of No Switch]
- Option: None
Additional information
- Part number: CXSJM15-75
- Lead time (days): 5
- Minimum order quantity: 1
- Country of origin: JP
- TARIC code: 8479899790
