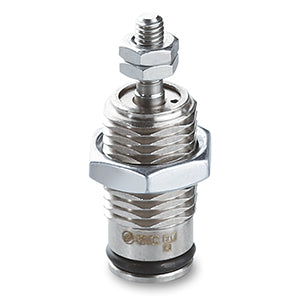

CJP-Z, Pin Cylinder, Single Acting, Spring Return – CJPB10-10H6Z
€24,25
VAT not included.
- SMC's CJP series double acting pin cylinder's compact design minimizes mounting space. To accommodate many design styles, the CJP is available in five mounting styles: basic nose, foot, flange, clevis, and trunnion. An auto switch capable model is also available. Available bore sizes include 6, 10, and 15mm with strokes ranging from 5 to 30mm. Other features include brass panel mounting nuts, stainless steel piston rod, and brass bodies.
Key features
- Bore sizes (mm): 4, 6, 10, 16
- Strokes from 5 to 15 mm
- 2 mounting options: embedded and panel mount type
- One-touch fitting can be connected
- Rod end cap available.
Specifications
- Mounting: B (Panel Mount Style)
- Bore Size: 10mm
- Stroke: 10mm
- Hose Nipple: H6 (For Tube Ø6/Ø4)
- Rod End Thread: Thread
- Rod End Cap: without Cap
- Made to Order: None
Additional information
- Part number: CJPB10-10H6Z
- Lead time (days): 21
- Minimum order quantity: 1
- Country of origin: JP
- TARIC code: 8412310090
