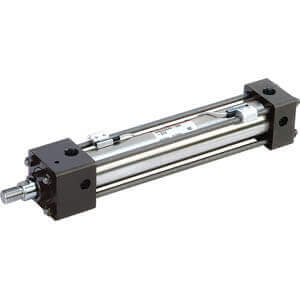

CH(D)SG Hydraulic Cylinder (Comforms to ISO) : 16 MPa – CHSGCA80TF-200N
€1.019,93
Skip to product information
CH(D)SG Hydraulic Cylinder (Comforms to ISO) : 16 MPa – CHSGCA80TF-200N
€1.019,93
VAT not included.
- CH series hydraulic cylinders are available in compact, round body, JIS or tie-rod types. Nominal pressure ranges from 3.5MPa to 16MPa. Bore sizes are available, depending on the series, from 20 to 160. Auto switches are available on most models.
Key features
- Maximum weight: no more than 52% of series CH2. <LI>Cylinder with Built-in Cover and Mounting Bracket allows easy Disassembly and Assembly.
Specifications
- Magnet: Without Magnet
- Mounting: CA (Single Clevis)
- Bore Size: 80mm
- Port Thread Type: TF (GF)
- Stroke: 200
- Rod End Nut: Without Rod End Nut
- Cushion: N (Without Cushion)
- Port Position: Port on Top - Cushion Valve on the Right
- Auto Switch: No Switch
- Lead Wire or Prewired Connector: 0.5m (Or None in the Case of No Switch)
- Number: 2 pcs. (Or None in the Case of No Switch)
Additional information
- Part number: CHSGCA80TF-200N
- Lead time (days): 30
- Minimum order quantity: 1
- Country of origin: JP
- TARIC code: 8412218090
