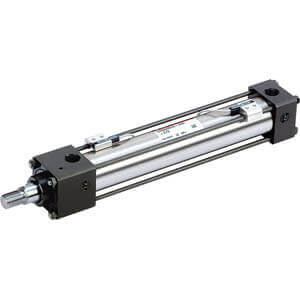

CH(D)SD Hydraulic Cylinder (Comforms to ISO) : 10 MPa – CHDSDTA40TF-400A-B
€462,17
Skip to product information
CH(D)SD Hydraulic Cylinder (Comforms to ISO) : 10 MPa – CHDSDTA40TF-400A-B
€462,17
VAT not included.
- CH series hydraulic cylinders are available in compact, round body, JIS or tie-rod types. Nominal pressure ranges from 3.5MPa to 16MPa. Bore sizes are available, depending on the series, from 20 to 160. Auto switches are available on most models.
Key features
- Maximum weight: no more than 50% of series CH2.
- <LI>Cylinder with Built-in Cover and Mounting Bracket allows easy Disassembly and Assembly.
Specifications
- Mounting: TA (Front Trunnion)
- Bore Size: 40 mm
- Rod End Nut: A (With Rod End Nut)
- Stroke: 400
- Lead Wire or Prewired Connector: 0.5m (Or None in the Case of No Switch)
- Number: 2 pcs. (Or None in the Case of No Switch)
- Magnet: D (With Magnet)
- Autoswitch: No Switch
- Port Position: B (Port on Top - Cushion Valve Down)
- Cushion: With Cushion in Both Sides
- Port Thread Type: TF (GF)
Additional information
- Part number: CHDSDTA40TF-400A-B
- Lead time (days): 41
- Minimum order quantity: 1
- Country of origin: JP
- TARIC code: 8412218090
