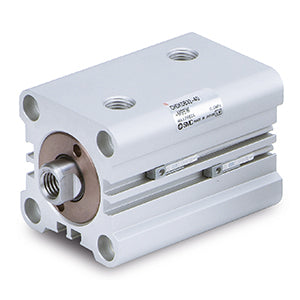

CH(D)KG(32-100), Compact Hydraulic Cylinder Series – CHDKGB32-75
€201,15
VAT not included.
- CH series hydraulic cylinders are available in compact, round body, JIS or tie-rod types. Nominal pressure ranges from 3.5MPa to 16MPa. Bore sizes are available, depending on the series, from 20 to 160. Auto switches are available on most models.
Key features
- JIS standard compact hydraulic cylinder
- Nominal pressure: 16MPa
- Bore sizes: 32~100
- Mounting: basic type
- Auto switch capable
Specifications
- Magnet: D (Built-in)
- Mounting: B (Basic)
- Bore Size: 32mm
- Thread Type: Rc
- Stroke: 75mm
- Rod End Nut: Female Thread
- Auto Switch: No Switch
- Lead Wire or Prewired Connector: 0.5m (Or None in the Case of No Switch)
- Number: 2 pcs. (Or None in the Case of No Switch)
Additional information
- Part number: CHDKGB32-75
- Lead time (days): 18
- Minimum order quantity: 1
- Country of origin: JP
- TARIC code: 8412218090
