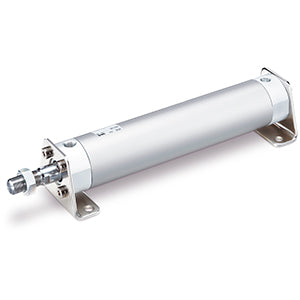

CG1-Z1, Air Cylinder, Standard Type, Single Acting, Spring Return/Extend – CG1ZN32TF-125SZ1
€77,40
Skip to product information
CG1-Z1, Air Cylinder, Standard Type, Single Acting, Spring Return/Extend – CG1ZN32TF-125SZ1
€77,40
VAT not included.
- Bore sizes (mm): 20, 25, 32, 40, 50, 63, 80, 100
- Strokes up to 1500 mm
- Improved piping flexibility
- Mounts: basic, foot, front or rear flange, front or rear trunnion, clevis
- Auto switch capable with a variety of lead wire lengths.
Key features
- Standard: Single acting
- Bore sizes (mm): 20, 25, 32, 40, 50, 63
- Strokes up to 300 mm.
Specifications
- Stroke: 125
- Action: S (Single Acting, Spring Return)
- Magnet: None
- Pivot Bracket: None
- Auto Switch: No Switch
- Made to Order: None
- Mounting: Z (Basic, w/Trunnion Mounting, Female Thread)
- Bore Size: 32mm
- Lead Wire or Prewired Connector: 0.5m (Or None in the Case of No Switch)
- Number: 2 pcs. (Or None in the Case of No Switch)
- Rod End Bracket: None
- Rod End: Male Rod End
- Port Thread Type: TF [G (or M5 ø20 to ø25)]
Additional information
- Part number: CG1ZN32TF-125SZ1
- Lead time (days): 28
- Minimum order quantity: 1
- Country of origin: JP
- TARIC code: 8412310090
