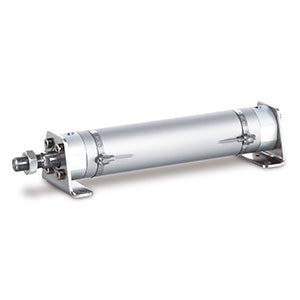

CG1-Z1, Air Cylinder, Double Acting, Single Rod – CG1ZA40TF-75Z1
€84,67
Skip to product information
CG1-Z1, Air Cylinder, Double Acting, Single Rod – CG1ZA40TF-75Z1
€84,67
VAT not included.
- Bore sizes (mm): 20, 25, 32, 40, 50, 63, 80, 100
- Strokes up to 1500 mm
- Improved piping flexibility
- Mounts: basic, foot, front or rear flange, front or rear trunnion, clevis
- Auto switch capable with a variety of lead wire lengths.
Key features
- Standard: double acting single rod
- Bore sizes (mm): 20, 25, 32, 40, 50, 63, 80, 100
- Strokes up to 1000 mm
- Improved piping flexibility
- Mounts: basic, foot, front or rear flange, front or rear trunnion, clevis
- Auto switch capable with a variety of lead wire lengths.
Specifications
- Stroke: 75
- Magnet: None
- Pivot Bracket: None
- Auto Switch: No Switch
- Cushion: A (Air Cushion)
- Made to Order: None
- Mounting: Z (Basic, w/Trunnion Mounting, Female Thread)
- Bore Size: 40 mm
- Lead Wire or Prewired Connector: 0.5m (Or None in the Case of No Switch)
- Number: 2 pcs. (Or None in the Case of No Switch)
- Rod End Bracket: None
- Rod End: Male Rod End
- Port Thread Type: TF [G ø32 to ø100 Air Cushion (or M5 ø20 to ø25, G ø32 to ø100 Rubber Bumper)]
- Special Port Location: None
Additional information
- Part number: CG1ZA40TF-75Z1
- Lead time (days): 28
- Minimum order quantity: 1
- Country of origin: JP
- TARIC code: 8412310090
