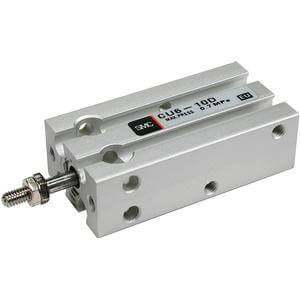

C(D)U, Free Mount Cylinder, Double Acting – CDU10-25D
€59,63
Skip to product information
C(D)U, Free Mount Cylinder, Double Acting – CDU10-25D
€59,63
VAT not included.
- The series CU free mount cylinder saves space and allows direct and precise mounting. It is available in 6mm to 32mm bore sizes with stroke lengths up to 50mm. Options include auto-switch capabilities, free mount choices, recessed switch mounting grooves, non-rotating rod, double rod, single and double acting, and rubber bumpers standard.
Key features
- Bore sizes from 6mm to 32mm available
- Stroke lengths up to 50mm
- Any surfaces can be used for mounting
- Space saving
- Auto-switch capable
Specifications
- Magnet: D (Built-in Magnet)
- Bore Size: 10 mm
- Port Thread: M5x0.8
- Rc1/8 for ø32:
- Stroke: 25 mm
- Auto Switch: No Switch
- Lead Wire or Prewired Connector: 0.5 m (Or None in the Case of No Switch)
- Number: 2 pcs. (Or None in the Case of No Switch)
Additional information
- Part number: CDU10-25D
- Lead time (days): 5
- Minimum order quantity: 1
- Country of origin: CN
- TARIC code: 8412310090
