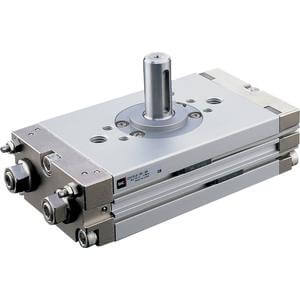

C(D)RQ2B, Compact Rotary Actuator, Rack & Pinion – CDRQ2BS15-90
€215,92
Skip to product information
C(D)RQ2B, Compact Rotary Actuator, Rack & Pinion – CDRQ2BS15-90
€215,92
VAT not included.
- Low-profile rotary actuator
- Sizes: 10, 15, 20, 30, 40
- Rotating angle: 90°, 180°, 360°
- Adjustable rotation time range: from 0.2 to 1 s/90°
- Low-speed version available.
Key features
- Low profile.
- Both single shaft and double shaft are available in all sizes.
- 2 auto switches are mountable on the same side.
- Rotating angle adjusting range: 350° to 370°.
- Options include magnet, shaft type, port thread style, and air cushion.
Specifications
- Magnet: D (Magnet)
- Shaft Type: S (Single Shaft)
- Size: 15 Mm
- Thread Type: M5 (10, 15)
- Rc 1/8 (20, 30, 40):
- Rotation Angle: 90 (80° to 100°)
- Air Cushion: Rubber Bumper
- Auto Switch: No Switch
- Lead Wire or Prewired Connector: 0.5m (Or None in the Case of No Switch)
- Number: 2 pcs. (Or None in the Case of No Switch)
Additional information
- Part number: CDRQ2BS15-90
- Lead time (days): 5
- Minimum order quantity: 1
- Country of origin: JP
- TARIC code: 8479899790
