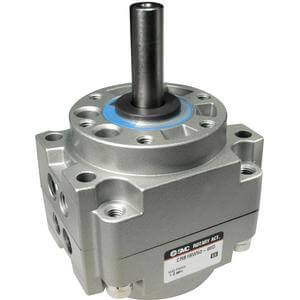

C(D)RB1*50~100, Rotary Actuator, Vane Style – CDRB1BW80-90D-XF
€478,38
VAT not included.
- Torque up to 150 Nm
- Rotating angles: 90°, 100°, 180°, 190°, 270°, 280°
- Many variations of shaft-end shape (7 types)
- Port location can be selected: Side or Axial ported
- Direct/Foot mounting
- Many made to order options available.
Key features
- Rotary actuator, vane type <LI>Compact, space saving body <LI>Direct mount applications possible <LI>Highly reliable <LI>Body side and axial direction ports <LI>Unrestricted auto switch mounting positions
Specifications
- Magnet: D (Magnet)
- Mounting: B (Basic)
- Shaft Type: W [Double shaft (Long shaft key & Four chamfers)]
- Body Size: 80mm
- Rotation Angle, Vane: 90D (Rotation Angle
- Vane Style: Double)
- Port Location: Side
- Auto Switch: No Switch
- Lead Wire or Prewired Connector: 0.5m (Or None in the Case of No Switch)
- Number: 2 pcs. (Or None in the Case of No Switch)
- Port Threads: XF (G)
Additional information
- Part number: CDRB1BW80-90D-XF
- Lead time (days): 5
- Minimum order quantity: 1
- Country of origin: JP
- TARIC code: 8412310090
