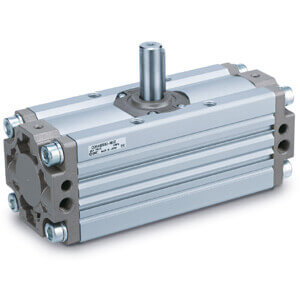

C(D)RA1-Z*30-100, Rotary Actuator, Rack & Pinion, Standard – CDRA1BS30-90CZ

• Rotary actuator
• Sizes: 30, 50, 63, 80, 100
• Rotating angle: 90°, 100°, 180°, 190°
• Adjustable rotation time range: from 0.2 to 5 s/90°.

Specifications

• Mounting: B (Basic)
• Type: Pneumatic
• Angle Adjusting Unit: None
• Lead Wire or Prewired Connector: 0.5m (Or None in the Case of No Switch)
• Number: 2 pcs.
• Magnet: D (Built-in)
• Size: 30 mm
• Port Thread: M Thread [ø30]; Rc [ø50-ø100]
• Shaft Type: S (Single Shaft)
• Type of Cushioning: C (Air Cushion)
• Auto Switch: No Switch
• Rotation Angle: 90°

Additional information

• Part number: CDRA1BS30-90CZ
• Lead time (days): 24
• Minimum order quantity: 1
• Country of origin: JP
• TARIC code: 8479899790

Documents

• Catalogue (PDF)
• Datasheet
• CAD model
• Operation manual
