C(D)M2-Z1, Round Air Cylinder, Single Acting, Single Rod – CDM2B25-50TZ1
€74,67
Skip to product information

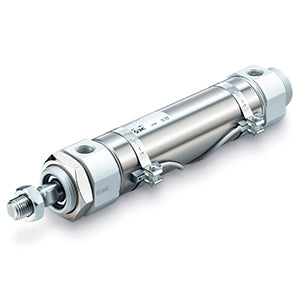

C(D)M2-Z1, Round Air Cylinder, Single Acting, Single Rod – CDM2B25-50TZ1
€74,67
VAT not included.
- Round air cylinder
- Bore sizes (mm): 20, 25, 32, 40
- Strokes up to 1000 mm
- Double-acting, single rod.
Key features
- Bore size (mm): 20, 25, 32, 40
- Standard stroke up to 250 mm
- Single acting, Single rod
- Rubber cushion.
Specifications
- Stroke: 50
- Action: T (Single Acting, Spring Extend)
- Rod End Thread: None
- Magnet: D (Built-in Magnet)
- Pivot Bracket: None
- Auto Switch: No Switch
- Made to Order: None
- Mounting: B [Basic (Double-side Bossed)]
- Bore Size: 25mm
- Lead Wire or Prewired Connector: 0.5m (Or None in the Case of No Switch)
- Number: 2 pcs. (Or None in the Case of No Switch)
- Port Thread: Rc
- Rod End Bracket: None
Additional information
- Part number: CDM2B25-50TZ1
- Lead time (days): 28
- Minimum order quantity: 1
- Country of origin: JP
- TARIC code: 8412310090
