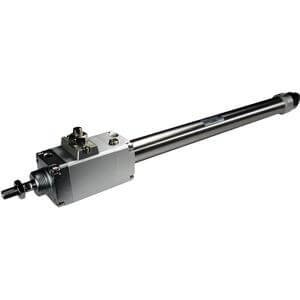

C(D)LM2, Air Cylinder, Double Acting, Single Rod, Fine Lock – CDLM2B20-50-E
€405,57
Skip to product information
C(D)LM2, Air Cylinder, Double Acting, Single Rod, Fine Lock – CDLM2B20-50-E
€405,57
VAT not included.
- We are proud to introduce our Series CM2-Z round air cylinder. This new model delivers improved assembly time and reduced maintenance costs thanks to the auto-switch position, which can be altered by the loosening of just one screw. The addition of a transparent auto switch bracket provides improved visibility of the status of the switch and the Series delivers extra flexibility including the option of male and female rods. Where space is at a premium, you can select a female rod end (up to 29 mm shorter) and/or boss-cut type (up to 16 mm shorter). With a wide range of mounting brackets available, the CM2-Z also delivers greater mounting flexibility, making it ideal for use in applications such as pick and place, positioning and clamping.
Key features
- Fine lock cylinder, CLM2
- Double acting, single rod
- 10 mounting options available
- Air hydro option available
- Auto switch capable
Specifications
- Magnet: D (Built-in)
- Style: Air Pressure Style
- Mounting: B (Basic Style)
- Bore Size: 20mm
- Stroke: 50
- Rod Boot: None
- Lock Style: E (Spring Lock (Exhaust Lock))
- Auto Switch: No Switch
- Lead Wire or Prewired Connector: 0.5m (Or None in the Case of No Switch)
- Number: 2 pcs. (Or None in the Case of No Switch)
Additional information
- Part number: CDLM2B20-50-E
- Lead time (days): 33
- Minimum order quantity: 1
- Country of origin: JP
- TARIC code: 8412310090
