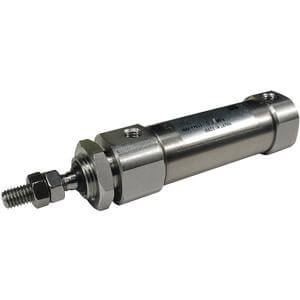

C(D)J5-S, Air Cylinder, Double Acting, Single Rod, Stainless Steel – CDJ5B16SV-150-B
€110,07
Skip to product information
C(D)J5-S, Air Cylinder, Double Acting, Single Rod, Stainless Steel – CDJ5B16SV-150-B
€110,07
VAT not included.
- The CG5-S series is a stainless steel cylinder that uses grease for food processing machines that meets FDA standards. The CG5-S series can be disassembled for replacement of seals which extends the service life of the cylinder. All stainless steel specification for external parts. Mounting bracket surfaces have been electropolished, making them smoother to prevent build-up of liquids and foreign matter. Plugs are provided for unused mounting threads to prevent residue build-up in the threads.
Key features
- Double acting, single rod CJ5-S cylinder
- All stainless steel external parts
- Bore sizes (mm): 10, 16
- Auto switch capability
Specifications
- Magnet: D (Built-in Magnet)
- Mounting: B (Basic Style)
- Bore Size: 16mm
- Seal Material: V (FKM)
- Stroke: 150
- Head Cover Port: 90° to Axis
- Auto Switch: B (w/o Switch, w/ Magnet)
- Lead Wire or Prewired Connector: 0.5m (Or None in the Case of No Switch)
- Number: 2 pcs. (Or None in the Case of No Switch)
Additional information
- Part number: CDJ5B16SV-150-B
- Lead time (days): 24
- Minimum order quantity: 1
- Country of origin: CN
- TARIC code: 8412310090
